TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM030LBHT1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM030LBHT1

BRAND : TIANMA

SIZE : 3.0"inch

RESOLUTION : 240(RGB)×400 [WQVGA] 156PPI

BRIGHTNESS : 130 cd/m² (Typ.)

Viewing Angle : 40/45/55/40 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM030LBHT1 Application Details

Basic Detail :
Manufacturer
Model Name
TM030LBHT1
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
3.0 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS
Vibration Level
-
Features :

  • TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY
  • TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY
  • TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM030LBHT1 Optical Details

Basic Detail :
Luminance
130 cd/m² (Typ.)
Contrast Ratio
100:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective)
Good View at
12 o'clock
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
40/45/55/40 (Typ.)(CR≥10)
Operating Mode
ECB, Normally White, Transflective
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Support Color
262K (6-bit)
Color Temperature
6066K
White Variation
-
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
3D Tech
-
Reflectance
6.85% (Typ.)

TIANMA TM030LBHT1 Mechanical Details

Pixel Features :
Number of Pixel
240(RGB)×400, WQVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.054×0.162 mm
Pixel Pitch(W×H)
0.162×0.162 mm [156PPI]
Physical Size :
Active Viewing
38.88(W)×64.8(H) mm
Overall Dim.
47.28(W)×76.4(H) mm
Bezel Opening
-
Overall Depth
3.5 (Typ.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
3:5
Shape Style
Touchscreen :
TP Controller
Without touch controller
TP Interface
-
Touch Points
1 point
TP Technology
4-wire Resistive Touch
Other Detail :
Mass
28.4g
Surface

TIANMA TM030LBHT1 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No

TIANMA TM030LBHT1 Interface Detail

Signal Electrical :
Input Current
-
Input Voltage
2.8/2.8V (Typ.)(VCC/IOVCC)
Consumption
-
Signal Interface
CPU/RGB/SPI
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
0.5 mm
45 pins
1 pcs

TIANMA TM030LBHT1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4S1P
Position
Edge light type
Exchange
-
Lamp Shape
1 string
Lamp Life
-
Lamp Electrical :
Input Voltage
12.8V (Typ.)
Input Current
20mA (Typ.)
Consumption
256mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No

TIANMA TM030LBHT1 Packing Details

Package Box : Amount Size (L×W×H) Weight
420 pcs / box 19.45±0.97 Kgs 530×351×226 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAYTM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

QVGA TIANMA LCD Panel



SVGA TIANMA LCD Panel


Quality TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY for sale

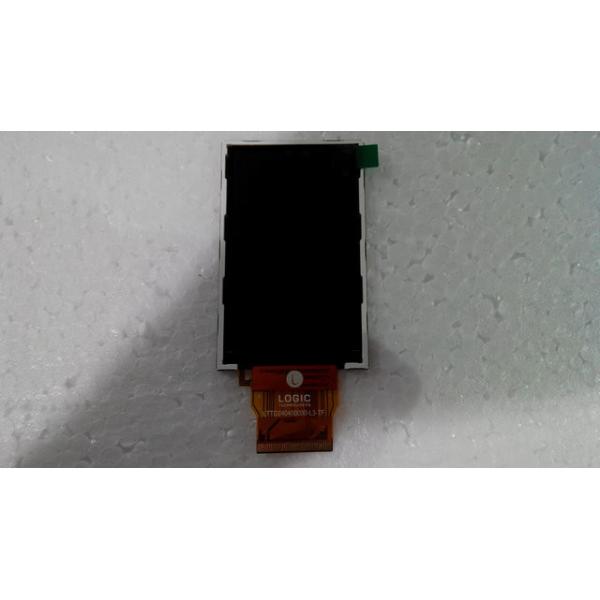

TM030LBHT1 TIANMA 3.0" 240(RGB)×400 130 cd/m² INDUSTRIAL LCD DISPLAY Images
